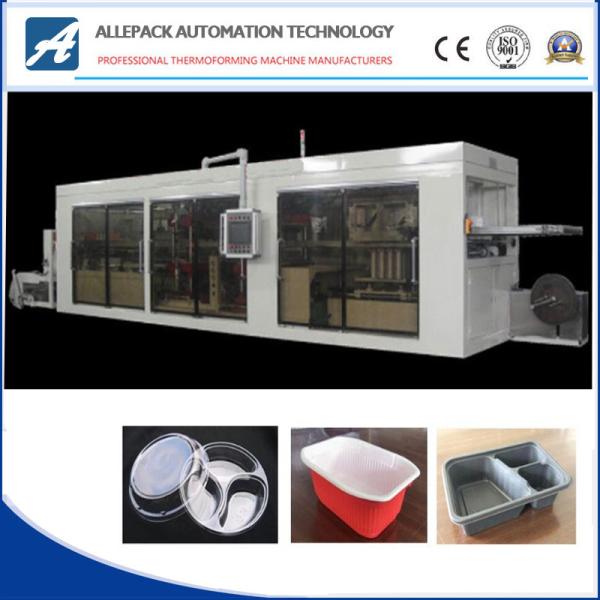

Automatic positive and negative 3 station thermoforming technology forming Machine,XG-A is fully automatic multi-stations thermoforming machine are designed and manufactured by our company, It absorbs the most advanced thermoforming technology from Germany, this full automatic production line combines sheet roll feeding, forming,cutting,stacking,conveying compleated on one machine. The whole system is fully-automatic and controlled by PLC through a touching screen. This machine is wide used in plastic containers/boxes/trays/bowls producing field.
Function and Feature:
1. The machine is designed and manufactured by the standard of “GMP” in medical industry and “QS” in food industry.
2. This machine can do forming, punching and blanking at the same time to avoid the cross-contamination of product.
3. The forming heating plate can open and close automatically, also can delay to start, so as to control and lower the waste of the material during the production.
4. Easy to replace the mould, application to different specifications of products.
5. Design the mould according to customer’s requirements.
6. Applicable projects: the material of HIPS, PVC, PET, PS.
Main Technical Parameters:
| Cutting Frequency | 15--45times/mins |
| Power | 380v/220v/50HZ |
| Stroke adjustable range | 50--160mm |
| Max.Forming Depth | 30mm(can be customized 45-60mm) |
| Max.Forming Area | 400×150mm |
| Capacity | |
| Motor Power | 1.5kw |
| Consumption | >0.2m3/min |
| Pressure | 0.4--0.7mpa |
| Overall Dimensions | 2500×1000×1600mm |
| Weight | 1200kg |
Product Application

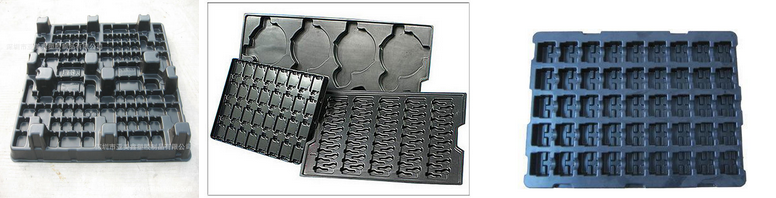

Disposable Plastic Bowl Machine Is Mainly Used to Produce Many Different Kinds Of Plastic Lids , Food Containers, Plastic Bowl, Plates , Toys Package, Food Trays , Hardward Trays, Medicine Trays and Etc.The Sheet Material Can Be HIPS, PVC, PET, PS.Custom Mould Is Welcomed.
