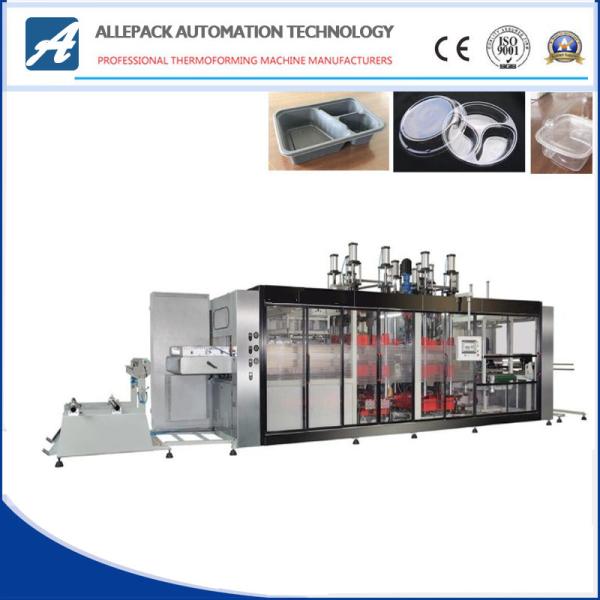

Automatic positive and negative 3 station thermoforming technology forming Machine,XG-A is fully automatic multi-stations thermoforming machine are designed and manufactured by our company, It absorbs the most advanced thermoforming technology from Germany, this full automatic production line combines sheet roll feeding, forming,cutting,stacking,conveying compleated on one machine. The whole system is fully-automatic and controlled by PLC through a touching screen. This machine is wide used in plastic containers/boxes/trays/bowls producing field.
Technical Parameter
| Parameter | MFC 7660(mode No.) |
| Sheet width (mm) | 500-800 |
| Sheet thickness (mm) | 0.2-1.5 |
| Max.dia.of sheet roll (mm) | 800 |
| Forming mold stroke (mm) | (Up ) 140,(down) 140 |
| Mold cutting force(ton) | 45 |
| Max.forming area (mm2) | 760×600 |
| Min.forming area (mm2) | 500×460 |
| Forming mold width (mm) | 500-760 |
| Forming mold length (mm) | 460-600 |
| Max.forming depth/height (mm) | 125 / 70 |
| Cutting mold stroke(mm) | up mold:80,
down mold:140 |
| Max.cutting area (mm2) | 760×600 |
| Cutting force(ton) | 45 |
I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc
III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.
Package
